TA50/55/60weboDecember 12, 2024 Features

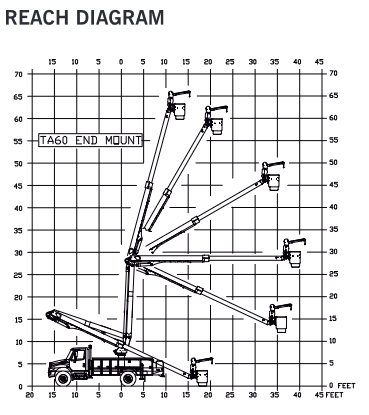

- Working Height up to 64.8 ft and Side Reach up to 40.1 ft
- 600 lb Platform Capacity Regardless of Jib Capacity
- 4-Function Single Handle Upper Control
- Altec ISO-Grip® Control System
- Fiberglass Upper Boom & Lower Boom Insulator
- Insulated Aerial Device
- Continuous Rotation
- Articulating Arm Provides Upper Boom Compensation
- Hydraulic Platform Rotation and Tilt
- Full Pressure, Open Center Hydraulic System
- A-Frame Primary Outriggers
- Outrigger Motion Alarm and Outrigger Interlocks
- Two Sets of Hydraulic Tool Circuits at Platform
- Diagnostic Pressure Test Quick Disconnect Couplings
- Emergency Stop Valves at All Upper and Lower Control Stations
- Lower Boom Lifting Eye
Additional Features
- Rear or Behind Cab Mount
- Altec ARM System
- Hydraulic Extend Jib
- 2-Man Platform with 180° Rotation
- Engine Start/Stop
- Remote Secondary Stowage
- Jib Adapter
- Phase Lifting Jib Attachment
- Auxiliary Outriggers
- Manual Throttle
- Platform Covers
- Intensifier at Boom Tip
- Tool Circuit Below Rotation

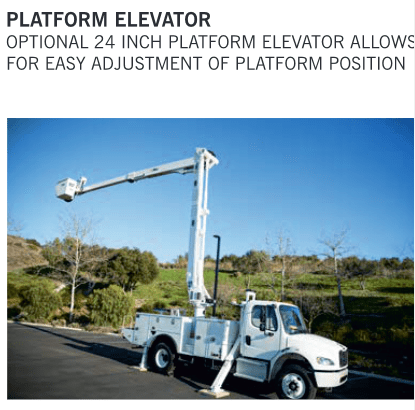

- Platform Elevator
- Lanyard Detection System Available on Select Platform Configurations
