AC and DC Hipot Tester: HD100 Series
- Versatile Testing Solution: Combines both AC and DC outputs in a single unit, eliminating the need for separate testers and meeting key standards like UL, CSA, VDE, IEC, and MIL.
- User-Friendly & Safe Operation: Features include zero start interlock, audible/visual alarms, and automatic grounding for enhanced safety and ease of use.
- Precision & Control: Equipped with a continuously adjustable voltage, output-connected voltmeter for accurate readings, and adjustable overload protection.
- Wide Application Range: Ideal for testing capacitors, transformers, cables, coils, connectors, medical devices, and appliances in production environments.
AC Dielectric Test System: 700-DI
- Standards-Compliant & Configurable: Designed for high-voltage AC testing in accordance with IEC60, IEEE 4, IEC 270, and other global standards, with various mechanical and mobile configurations available.
- Advanced Features & Control: Offers microprocessor-controlled regulation, adjustable voltage output, SIL3 compatibility, and output-connected meters for precise and reliable testing.
- Built-in Safety & Connectivity: Includes zero start interlock, overload protection, surge/transient protection, and HIPODirect Mobile App compatibility for wireless test report management.
- Wide Industrial Applications: Ideal for testing transformers, capacitors, bushings, switchgear, HV components, and insulating materials across various electrical industries.
AC and DC Dielectric Breakdown Test System: D149-DI
- Advanced Automated Testing: Pre-programmed to perform ASTM D149 and IEC 60243-1/-2 tests with customizable sequences, enabling flexible and accurate dielectric breakdown analysis.
- High Precision & Fast Detection: Equipped with a fast-sensing voltmeter circuit that detects breakdown voltage within 10μs and allows precise control over parameters like voltage, ramp rate, and leakage current.
- Modern Interface & Connectivity: Features a 7” touchscreen, USB 2.0 for data download, and HIPODirect Mobile App support for wireless report sharing and firmware updates.
- Comprehensive Safety & Versatility: Includes a built-in safety cage, external ground stick, overcurrent sensitivity control, and optional test fixtures—ideal for testing materials like ceramics, coatings, adhesives, and insulating fluids.

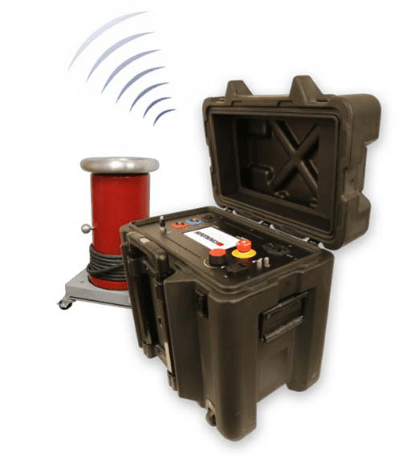

Portable AC Hipot Tester: HVT-DI
- Modern Digital Upgrade: Transforms older analog Hipot models into advanced digital systems with portable controls, a calibrated voltmeter probe, and HIPODirect compatibility for seamless data transfer and firmware updates.
- Precision Testing & Measurement: Offers highly accurate voltage, current, impedance, and phase angle readings, with a guard circuit to eliminate stray leakage and ensure precise current measurement.
- Field-Ready & User-Friendly: Designed for rugged field use with wheels, a 7” touchscreen interface, adjustable brightness, and intuitive controls for quick setup and testing.
- Safe & Versatile Applications: Includes safety features like an interlock, E-Stop, and fast-acting fuse—ideal for testing aerial platforms, bucket trucks, switchgear, vacuum interrupters, hot sticks, and hydraulic hoses.
