THERMAL CAMERA

THERMAL CAMERA D – SERIES

Application field: Thermography Power system, Solar energy, Petrochemical industry, Industrial process, Building inspection Electrical Substation, Transmission Line

GUIDE C series thermal imaging camera is an intelligent inspection device superior to any other thermal imaging products in its class. High resolution allows the electrical and mechanical users to pinpoint any overheating quickly and take accurate temperature measurement intuitively on a 5-inch 720P LCD display. The ergonomic rotating LCD and lens design makes it comfortable to aim up at any overhead components. Based on an open Android operating system design, it works not only as a thermal camera but also a mobile terminal for versatile application programs

Features

Ergonomic design

  • Ergonomic design,comfortable grip for a long time
  • Exquisite appearance and strong structure,2m drop test certificate
  • Lightweight about 800g

Aadapt to different occasions

  • Three types--192×144 and 384×288 IR FPA detector,automatic and electric focusing
  • Four image presentations--IR, visible, PIP and MIF
  • Buckle type lens--tele lens, wide lens, high temperature filer lens can be changed directly in different occasions
  • Large capacity battery--four hours of operating time with two batteries

IR Analyzer on PC terminal
Images capturing by an infrared camera is only the first step of an infrared inspection. Guide Ir Analyzer will help you accomplish the full inspection process until a professional report is submitted.

  • Various images and videos resources
  • Image processing
  • Video analysis
  • Preference settings
  • Report generation in PDF or WORD format

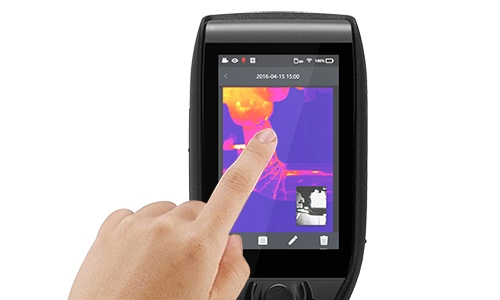

4”high light touch screen, easy to operate

  • With 800×480 resolution 4” high light touch screen
  • Adjustable brightness, still clear under sunshine
  • Easy operation with step by step professional instruction

Technical Specifications

  • IR RESOLIUTION- 192X144, 384X288
  • NETD- 45mK, 50mK
  • FOCUS- Manual, Auto
  • Visual Camera-Resolution: 5MP/ 640×480, Alternative, Focus-free, FOV 25°×19°
  • DISPLAY-4" highlight LCD touch screen, 480×800, 24 bits
  • IMAGE-IR image/ Visual image MIF/ PIP
  • Color Palettes-8.
  • TEMPERATURE RANGE--20℃~150℃,100℃~650℃,650℃~1500℃;
  • Measurement Area-5 X Spot; 2 X Line; 5 X Area;
