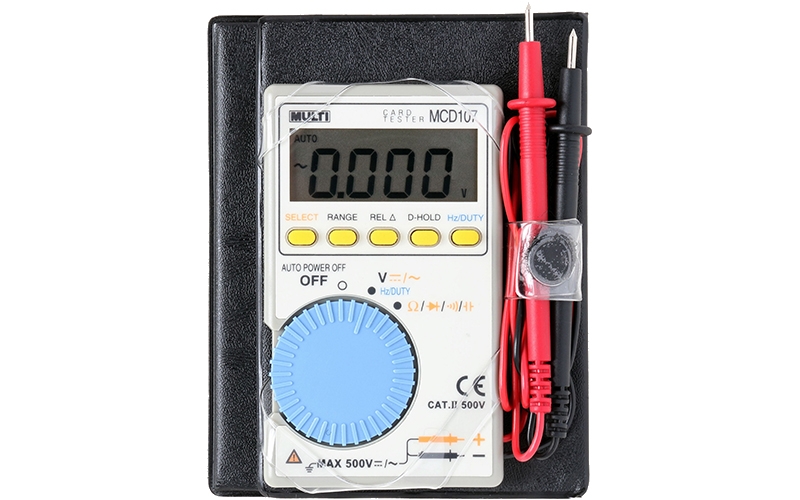

MCD-107
FEATURES
- Ultra compact size and weight
- Easy operation with rotary switch
- 4000 count full scale with auto ranging
- Auto Power Off Function.
MCD-007
ULTRA COMPACT SIZE & LIGHT WEIGHT
FEATURES
- Easy operation with rotary switch.
- AC/DC voltage, resistance, continuity check and diode test with full auto-ranging operation.
MCD-008
UNIQUE FUNCTION – CORD REEL TEST LEAD TYPE
FEATURES
- 3200 count full scale with bargraph display.
- Low power consumption with auto power off function.
MCD-009
＊ Book Case Type
＊Size : 60(W)×110(H)×9.5(D)㎜
＊Weight : Approx. 86g
FEATURES
- Ultra compact size and light weight.
- Easy operation with rotary switch.
- AC/DC voltage, resistance, continuity check and diode test with
full autoranging operation. - 3200 count full scale with bargraph display.
- Low power consumption with auto power off function.
MCD-010
＊Cord Reel Type
＊Size : 72(W)×114(H)×22.5(D)㎜
＊Weight : Approx. 110g
FEATURES
- Ultra compact size and light weight.
- Easy operation with rotary switch.
- AC/DC voltage, resistance, continuity check and diode test with
full autoranging operation. - 3200 count full scale with bargraph display.
- Low power consumption with auto power off function.
Specifications
| SPECIFICATIONS | MCD-107 | MCD-007 | MCD-008 | MCD-009 | MCD-010 |
|---|---|---|---|---|---|
| Measuring Range | DC Voltage: 400mV/4V/ 40V/400V/500V AC Voltage: 4V/40V/400V/500V Resistance: 400Ω/4.0kΩ/40kV /400kV/4MΩ/40MΩ Capacitance: 40nF/400nF/4µF /40µF/100µF Frequency: 5Hz/50Hz/500Hz/ 5kHz/50KHz Diode Test:Open circuit voltage: approx.1.5V Continuity Check: Beeper: 10～60Ω, Open circuit voltage: approx. 0.4V Duty cycle: 0.1~99% |
DC Voltage:320mV/3.2V/32V/320V/500V AC Voltage:3.2V/32V/320V/500V Resistance:320Ω/3.2kΩ/32kV/ 320kV/3.2MΩ/32MΩ Diode Test:3.2V Continuity Check:320Ω |
DC Voltage:320mV/3.2V/ 32V/320V/500V AC Voltage:3.2V/32V/320V/500V Resistance:320Ω/3.2kΩ/32kV/ 320kV/3.2MΩ/32MΩ Diode Test:3.2V Continuity Check:320Ω |
DC Voltage:320mV/3.2V/ 32V/320V/500V AC Voltage:3.2V/32V/320V/500Vrms Resistance:320Ω/3.2kΩ/32kV /320kV/3.2MΩ/32MΩ Diode Test:3.2V Continuity Check:320Ω |
DC Voltage:320mV/3.2V/ 32V/320V/500V AC Voltage:3.2V/32V/320V/500Vrms Resistance:320Ω/3.2kΩ/32kV/ 320kV/3.2MΩ/32MΩ Diode Test:3.2V Continuity Check:320Ω |
| Display | LCD, max.reading of 4000 | 3 1/2 digit LCD, max. reading of 3200 |
3 1/2 digit LCD, max. reading of 3200 |
3 1/2 digit LCD, max. reading of 3200 |
3 1/2 digit LCD, max. reading of 3200 |
| Polarity | Automatic (-)negative indication | Automatic (-)negative indication | Automatic (-)negative indication | Automatic (-)negative indication | Automatic (-)negative indication |
| Over range indication | "OL" mark on LCD | "OL" mark on LCD | "OL" mark on LCD | "OL" mark on LCD | "OL" mark on LCD |
| Low battery indication | "B" mark on LCD | "B" mark on LCD | "B" mark on LCD | "B" mark on LCD | "B" mark on LCD |
| Data hold indication | "DH" mark on LCD | ||||
| Sampling | 3 times/sec | 2 times/sec | 2 times/sec | 2 times/sec | 2 times/sec |
| Relative indication | "△" mark on LCD | - | - | - | - |
| Auto power off | Approx.30 minute later after last key operation | Approx. 10minutes after the power switch on |
Approx. 10minutes after the power switch on |
Approx. 10minutes after the power switch on |
Approx. 10minutes after the power switch on |
| Operating temperature | 0℃ to 40℃,< 80% RH (Non-condensing) |
0℃ to 40℃,< 70% RH (Non-condensing) |
0℃ to 40℃,< 70% RH (Non-condensing) |
0℃ to 40℃,< 70% RH (Non-condensing) |
0℃ to 40℃,< 70% RH (Non-condensing) |
| Storage temperature | -10～50℃, < 70%RH(Without condensation) | -20℃ to 60℃,< 80%RH (Non-condensing) |
-20℃ to 60℃,< 80%RH (Non-condensing) |
-20℃ to 60℃,< 80%RH (Non-condensing) |
-20℃ to 60℃,< 80%RH (Non-condensing) |
| Power supply | Lithium battery CR2032×1 | LR-44 (1.55V)×2 | LR-44 (1.55V)×2 | LR-44 (1.55V)×2 | LR-44 (1.55V)×2 |
| Power consumption | Approx.6mW ( at DCV) | 5.0mW | 5.0mW | 5.0mW | 5.0mW |
| Size | 99(H)×59(W)×8.6(D)mm | W60×H110×D9.5mm | W72×H114×D22.5mm | W60×H110×D9.5mm | W72×H114×D22.5mm |
| Weight | Approx. 86g (Including batteries and case) |
Approx. 100g (Including batteries and case) |
Approx. 86g (Including batteries and case) |
Approx. 100g (Including batteries and case) |
|
| Accessories | Book type cover case:1 Instruction manual:1 Battery:1 |
Hard cover case:1 Instruction manual:1 Batteries:2 |
Hard cover case:1 Instruction manual:1 Batteries:2 |
Hard cover case:1 Instruction manual:1 Batteries:2 |
Hard cover case:1 Instruction manual:1 Batteries:2 |
