M-200
FEATURES
- with “U” Type Direct Touch CT enables AC current measurement of Single & Three Phase Circuit just by touching CT to the conductor.
M-210
FEATURES
- Ultra-compact size with 23㎜φCT
- Most suitable for the use of the narrow & congested circuit.
M-220
FEATURES
- 33㎜φ CT window, and ultra-compact size
- Data-hold function. Especially useful when working in dark or hard to get areas.
- Conform to IEC safety requirements.

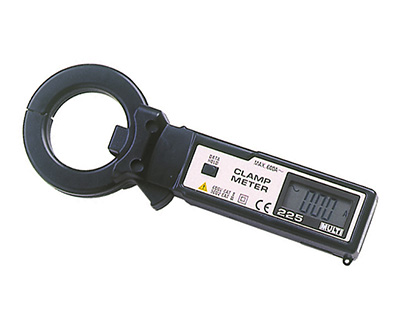

M-225
FEATURES
- 40㎜φ CT window, and ultra-compact size.
- Data hold function. Especially useful when working in dark or hard to get areas.
- Conform to IEC safety requirements.
SPECIFICATIONS
| SPECIFICATIONS | M200 | M210 | M220 | M225 |
|---|---|---|---|---|
| Measuring function | Load current | |||
| Range | AC 0～20A/200A | AC 0～200A/600A | ||
| Accuracy | 23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±1.2% rdg ± 5 dgt AC 200A/100mA/±1.2% rdg ± 5 dgt U type CT Cable type/Resolution/Accuracy Single phase IV cable/0.1A/Approx. ±5% Parallel VVF cable/0.1A/Approx. ±5% Three phase VVR cable/0.1A/Approximate value23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±1.2% rdg ± 5 dgt AC 200A/100mA/±1.2% rdg ± 5 dgt U type CT Cable type/Resolution/Accuracy Single phase IV cable/0.1A/Approx. ±5% Parallel VVF cable/0.1A/Approx. ±5% Three phase VVR cable/0.1A/Approximate value | 23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±1.2% rdg ± 5 dgt AC 200A/100mA/±1.2% rdg ± 5 dgt23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±1.2% rdg ± 5 dgt AC 200A/100mA/±1.2% rdg ± 5 dgt | 23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±1.2% rdg ± 5 dgt AC 200A/100mA/±1.2% rdg ± 5 dgt23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±1.2% rdg ± 5 dgt AC 200A/100mA/±1.2% rdg ± 5 dgt | 23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 200A/100mA/±1.5% rdg ± 5 dgt AC 600A/1A/±1.0% rdg ± 8 dgt23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 200A/100mA/±1.5% rdg ± 5 dgt AC 600A/1A/±1.0% rdg ± 8 dgt |
| Jaw opening capability | 33mmφ | 23mmφ | 33mmφ | 40mmφ |
| Safety standard | - | - | IEC 61010-1, IEC 61010-2-032 Installation CategoryⅡ600V or CategoryⅢ300VIEC 61010-1, IEC 61010-2-032 Installation CategoryⅡ600V or CategoryⅢ300V | IEC 61010-1, IEC 61010-2-032 Installation CategoryⅡ600V or CategoryⅢ300V.IEC 61010-1, IEC 61010-2-032 Installation CategoryⅡ600V or CategoryⅢ300V. |
| E.M.C. standard | - | - | EN 61326 | EN 61326 |
| Display | 3.5 digit LCD, max. reading of 1999 | |||
| Measuring method | Dual slope integration mode | |||
| Over range indication | Blanking of all digits except MSD 1 | |||
| Low battery indication | "B" mark on LCD | |||
| Data hold indication | "DH" mark on LCD | |||
| Sampling | 2 times/sec | |||
| Withstanding Voltage | AC 2200V 1 minute max. (Between the core of CT and outer case) | AC 3700V 1 minute max. (Between the core of CT and outer case) | ||
| Operating Temperature | 0℃ to 40℃, 80%RH max. ( Without condensation ) | |||
| Storage temperature | -10℃ to 60℃, 70%RH max. ( Without condensation ) | |||
| Power supply | 1.55V (SR-44, LR-44)×2 | |||
| Power consumption | 2.5mW | 2.5mW | 3mW | 5mW |
| Battery life | SR-44 (200 hours), LR-44 (100 hours) | |||
| Size | 54(W)×170(H)×21(D)mm | 48(W)×146(H)×20(D)mm | 54(W)×167(H)×23(D)mm | 64(W)×175(H)×23(D)mm |
| Weight | Approx. 100g | Approx. 80g | Approx. 100g | Approx. 115g |
| Accessories | Soft case：1 Instruction manual：1 Batteries LR-44(1.55V)：2 | |||
