LID-UPD STD

THERMAL CAMERA

LEAKY INSULATION DETECTION WITH
ULTRA SOUND PARTIAL DISCHARGE DETECTOR

lid
lid

LID-UPD STD is the tri functional asset testing solution to detect defective insulation

Advantages:

Effective “Leaky: Unique combined Solutions to identify & detect Asset” by specialised CT and Ultrasound & Partial Discharge along with OLPD Software.
Online Testing : Test substation asset under charged condition.
Safety : The equipment are operated at safe distance.
Accurate : The modern Technology used to capture accurate data.
Quick : Designed portable, user friendly.

Get a quote
Get Demo

LEAKAGE MEASUREMENT

  • Any Electrical Assets getting weaker it loose its insulation properties
  • Weak Insulation start leaking the current slowly
  • Leakage will be non linear and non uniform
  • Current will be mix of Low and High frequency
  • If the leakage is more there is deterioration of insulation properties

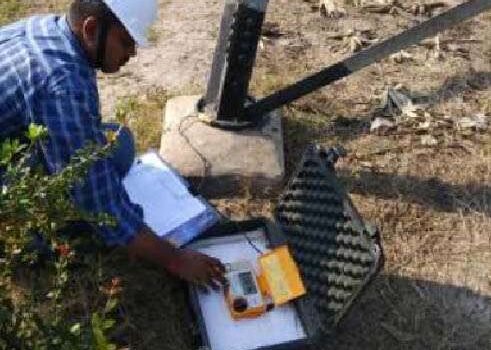

In this equipment the flexible smart CT sensor is specially designed to measure the line and leakage current in line structures, poles assets like Transformer, CT, PT, LA, Isolator etc. failure of insulation leading to leakage which will flow to ground either from earthing or structure.
Abnormal leakage current indicates defect due to partial discharge. In case abnormal leakage current measured at any components this is to be diagnosed for further partial discharge. Keeping the big size earthing structure the equipment designed sensor is around 200mm dia.

lidupd

FEATURES

  • 3 in 1 equipment designed user friendly.
  • Design as per IEC 60270.
  • Tested as per IEC Standards
  • Engineer friendly software
  • Detailed report in the software itself
  • Effective technology using 5 sensors hardware and software
  • Made suitable for LV, HV and EHV application.
