MCL-800D
FEATURES
- 80㎜φCT window.
- DC mV analog data output for recorder.
- The least affection from external magnetic field.
- Continuous long time measurement and useful data hold
function.
[wpdm_package id=’23602′]
M-1800
FEATURES
- 80㎜φCT window and continuous long time measurement
- DC mV analog data output for recorder.
[wpdm_package id=’23603′]
MCL-1100D
FEATURES
- 108×128㎜ big CT window.
- DC mV analog data output for recorder.
- Wide ranges for 0.1mA〜3000A
[wpdm_package id=’23604′]

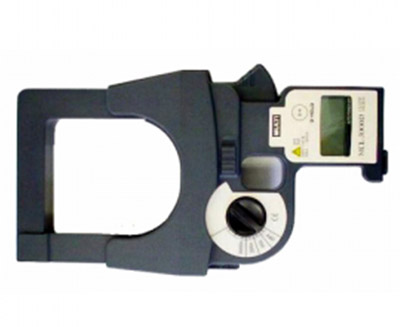

MCL-3000D
FEATURES
- 108×128㎜ big CT window.
- DC mV analog data output for recorder.
- Wide ranges for 0.01A〜3000A
[wpdm_package id=’23605′]
Specifications
| SPECIFICATIONS | MCL-800D | M-1800 | MCL-1100D | MCL-3000D |
|---|---|---|---|---|
| Measuring function | AC load current, AC leakage current | AC load current | AC load current, AC leakage current | AC load current |
| AC Conversion | Average responding | AC coupled True rms responding | ||
| Range | 5 ranges manual AC200mA/2A/20A/200A/1000A (50/60Hz) |
3 ranges manual AC20A/200A/1800A (50/60Hz) |
5ranges manual AC300mA/3A/30A/300A/3000A (50/60Hz) |
3 ranges manual AC30A/300A/3000A (50/60Hz) |
| Accuracy |
23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 200mA/0.1mA/±2.0% rdg ± 5 dgt AC 2A/1mA/±2.0% rdg ± 5 dgt AC 20A/10mA/±2.0% rdg ± 5 dgt AC 200A/0.1A/±2.0% rdg ± 5 dgt AC 1000A/1A/±2.0% rdg ± 5 dgt |
23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±3.0% rdg ± 3 dgt AC 200A/0.1A/±3.0% rdg ± 3 dgt AC 1800A/1A/±3.0% rdg ± 3 dgt |
23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy(50/60Hz) AC 300mA/0.1mA/±1.5%rdg±8dgt AC 3A/0.001A/±1.5%rdg±8dgt AC 30A/0.01A/±1.5%rdg±8dgt AC 300A/0.1A/±1.5%rdg±8dgt AC 3000A/1A/±1.5%rdg±8dgt |
23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy(50/60Hz) AC 30A/0.01A/±1.5%rdg±8dgt AC 300A/0.1A/±1.5%rdg±8dgt AC 3000A/1A/±2.0%rdg±8dgt |
| Max Jaw Opening capability | 80mmφ | 108mm (108x128mm) | ||
| Safety standard | - | - | IEC61010-1, IEC-61010-2-032 Installation CategoryⅡ, 600V or CategoryⅢ, 300V | IEC61010-1, IEC61010-2-032 Installation Category. Category Ⅲ600V |
| Display | 3.5 digit LCD, max. reading of 1999 | LCD, max. 3200 count with annunciators | ||
| Filter function | - | - | Low pass filter : 150Hz | - |
| Measuring method | Dual slope integration mode | |||
| Auto power off function | - | - | The meter is set to power off Approx. 10 minute later after power on. | |
| Over range indication | Blanking of all digits except MSD 1 | "OL" mark on LCD | ||
| Data hold indication | “D・H“ mark on LCD | "DH" mark on LCD | ||
| Low battery indication | "B" mark on LCD | "Battery" mark on LCD | ||
| Sampling | 2 times/sec | |||
| Limitation of circuit voltage | Less than AC 600V | |||
| Output signal for recorder | DC100mV (for full scale) | DC 300mV for full scale for each range | ||
| DCmV output accuracy | - | - | ±1.5% of Full Scale | - |
| Withstanding Voltage | AC 2000V 1 minute max. (Between the core of CT and outer case) | AC 3700V, 1 minute (between core of CT and outer case) | AC 5500V, 1 minute (between operation handle and core of CT) | |
| Operating Temperature | 0℃ to 40℃, 80%RH max. ( Without condensation ) | |||
| Storage temperature | -10℃ to 60℃, 70%RH max. ( Without condensation ) | |||
| Power supply | 1.5V (AM-4, LR03 or AAA)×2 | 1.5V battery(UM-4 or AAA size) × 2 | ||
| Power consumption | 3 mW | Approx. 6mW | ||
| Battery life | Approx. 350 hours ( Alkaline batteries ) | Approx. 200 hours continuous | ||
| Size | 138(W)×225(H)×37(D)mm | 194(W) x 341.5(H) x 52(D) mm | ||
| Weight | Approx. 500g | Approx. 1.9kgs | Approx. 1.8kgs | |
| Accessories | SHard carrying case:1 Instruction manual:1 Batteries:2 |
Battery (UM-4):2 Carrying Case:1 Instruction manual:1 |
Battery (UM-4):2 Instruction Manual:1 Carrying Case:1 Hand Strap:1 |
|
